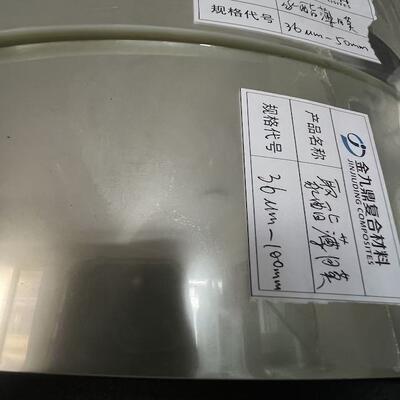

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration

สถานที่กำเนิด จีน
ได้รับการรับรอง ISO9001
หมายเลขรุ่น 36um-100มม
จำนวนสั่งซื้อขั้นต่ำ 1200kgs
รายละเอียดการบรรจุ พาเลท 1200กก./พาเลท
เวลาการส่งมอบ 7-15 วัน
เงื่อนไขการชำระเงิน T/T, L/C, เวสเทิร์นยูเนี่ยน
รายละเอียดสินค้า
วัตถุดิบ สัตว์เลี้ยง 100% การยืดตัวที่จุดขาด 60%
ตัวอย่าง ใช้ได้และฟรี วัสดุ โพลีเอสเตอร์
แอปพลิเคชัน ถอดแบบ ความต้านทานแรงดึง 150 เมกะปาสคาล
การบรรจุ กระเป๋าพลาสติก สี โปร่งใส
รหัส HS 392062 ทนต่ออุณหภูมิ สูงถึง 180 ° C
ความกว้าง 50 มม., 70 มม. หรือตามคำสั่ง
ฝากข้อความ
รายละเอียดสินค้า

High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration



This 25 - um - thick Polyester Release Film is specifically designed for use in the manufacturing process of Glass - Reinforced Plastic (GRP) pipelines. Its unique properties make it an essential component in ensuring the high - quality production of these pipelines. With excellent strength, it can withstand the pressures and forces exerted during the manufacturing steps. The film's strong yet flexible nature allows it to conform precisely to the shape of the pipeline molds. Its remarkable clarity ensures that there are no visual impairments or distortions that could potentially affect the quality inspection of the GRP pipelines. Moreover, being free of joint knots, it provides a smooth and continuous surface, which is crucial for the uniform curing and integrity of the GRP material, resulting in durable and reliable GRP pipeline.



Product Features

Excellent resistance to high and low temperatures

Good chemical resistance

Excellent mechanical and electrical performance

Excellent flatness, low friction coefficient



Product Application

This product is widely used for mold demolding and surface smoothing in the production process of fiberglass pipelines, storage tanks, etc. The film surface can also be coated with silicone oil treatment to make demolding more efficient.





High Performance 36μm PET Polyester Film for FRP Continuous Winding Pipe Deaeration 0

Technical Data



Item Standard
Thickness (um)

19/25/30/36/40/50/75 ± 10%



Tensile strength (Mpa )      (warp and weft)

≥ 150



Break elongation (%)

≥ 60



Shrinkage (%) (warp and weft) ≤3
Stability under high temparature

≥180
